Description

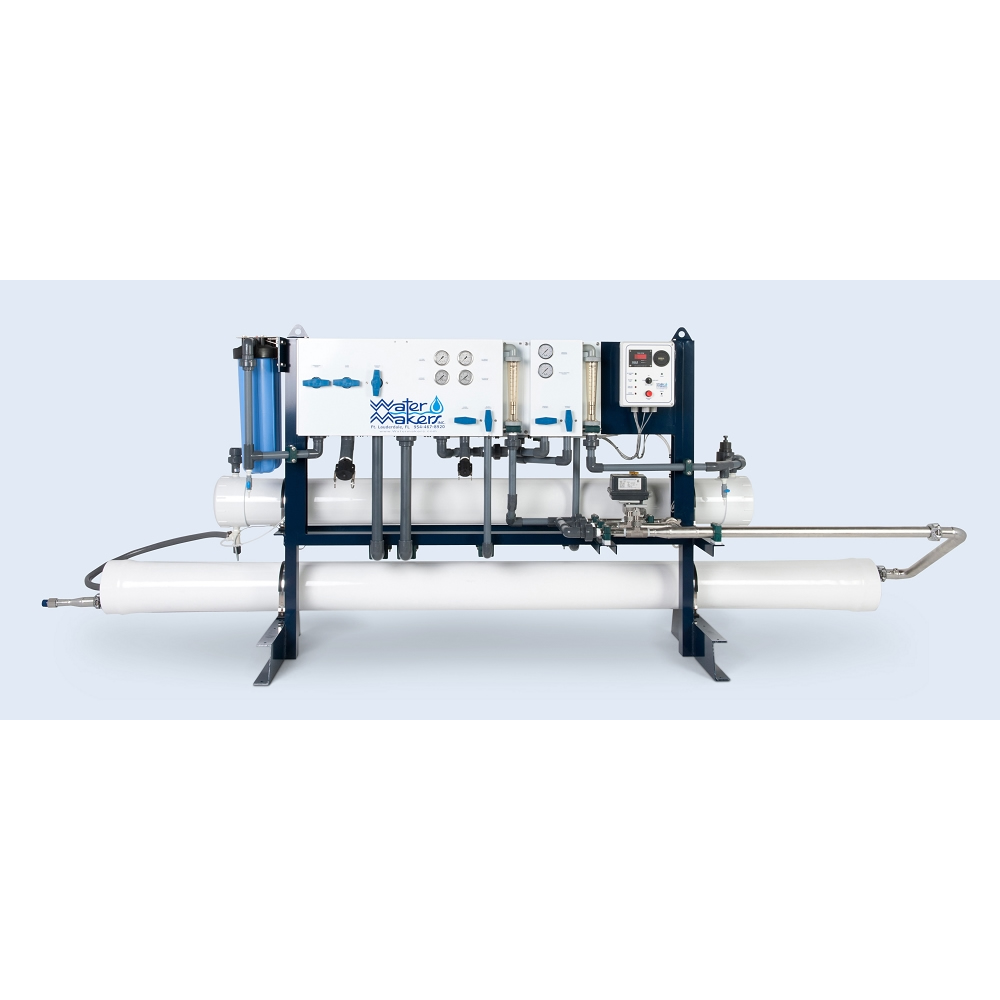

Sample application of where this watermaker may be used.
- Automatic Start/Stop/Rinse with Manual Override
- Unattended Rinse
- Remote Operation
- FedCo pump – high efficiency
- Drawback tank for membrane rinsing
- LED Salinity Monitor & Auto Diverter
- High and Low Pressure Safety Shut-Offs
- Drawback tank for membrane rinsing
- PLC Micro Smart Control Unit
- Fresh Water Rinse & Clean Feature
- Triple-Bag High-Efficiency Prefiltration – 25/5/1 Micron
- Precision Flow Meters and Pressure Gauges
- Non-Corrosive Feed Pump
- Product Water Sample Port
- High-Efficiency TEFC Motors
- All Necessary Installation Hardware
- Unattended Rinse
- High-Efficiency Bag Prefiltration
- Remote Warning Indicators
- Media Filtration – Back Washable
- OzoneTreatment
- Alternate Power Configurations
- Alternate Physical Configurations (Modular/Frame/Container)
| Component | Length | Depth | Height | Weight** | |
| H.P. Pump/Motor | 60.0″ | 32.0″ | 29.0″ | 959.0 lbs | |
| Prefilters (including frame and piping) |
38.0″ | 24.0″ | 36.0″ | 94.0 lbs | |
| Charcoal Rinse Filter (including piping) |
25.0″ | 8.3″ | 28.8″ | 38.0 lbs | |
| Feed Pump (including fittings) |
24.0″ | 12.3″ | 16.8″ | 45.0 lbs | |
| Frame (with all other components) |
165.0″ | 32.0″ | 70.0″ | 1044.0 lbs | |
| *not pictured **approximate |
Total Weight**: | 2180.0 lbs | |||
| Capacity* | (GPD) | 16705.0 | |||
| (GPH) | 696.0 | ||||
| (LPH) | 2634.8 | ||||
| Horsepower | H.P. Pump | 30.0 | |||
| Feed Pump | 3.0 | ||||
| H.P. Pump Flow | 40.0 | ||||
| Power Specifications | |||||
| Option 1 | 75.0 amps @ 230V, 60 Hz, 3-phase, 17.25 kW | ||||
| Option 2 | 37.5 amps @ 460V, 60 Hz, 3-phase, 17.25 kW | ||||
*Standard Test Conditions:
Pressure: 900 PSI
Source Water: Salinity 35,000 ppm, pH 7, temp. 77F/25C
Product Flow: +/- 15% at standard conditions
