Description

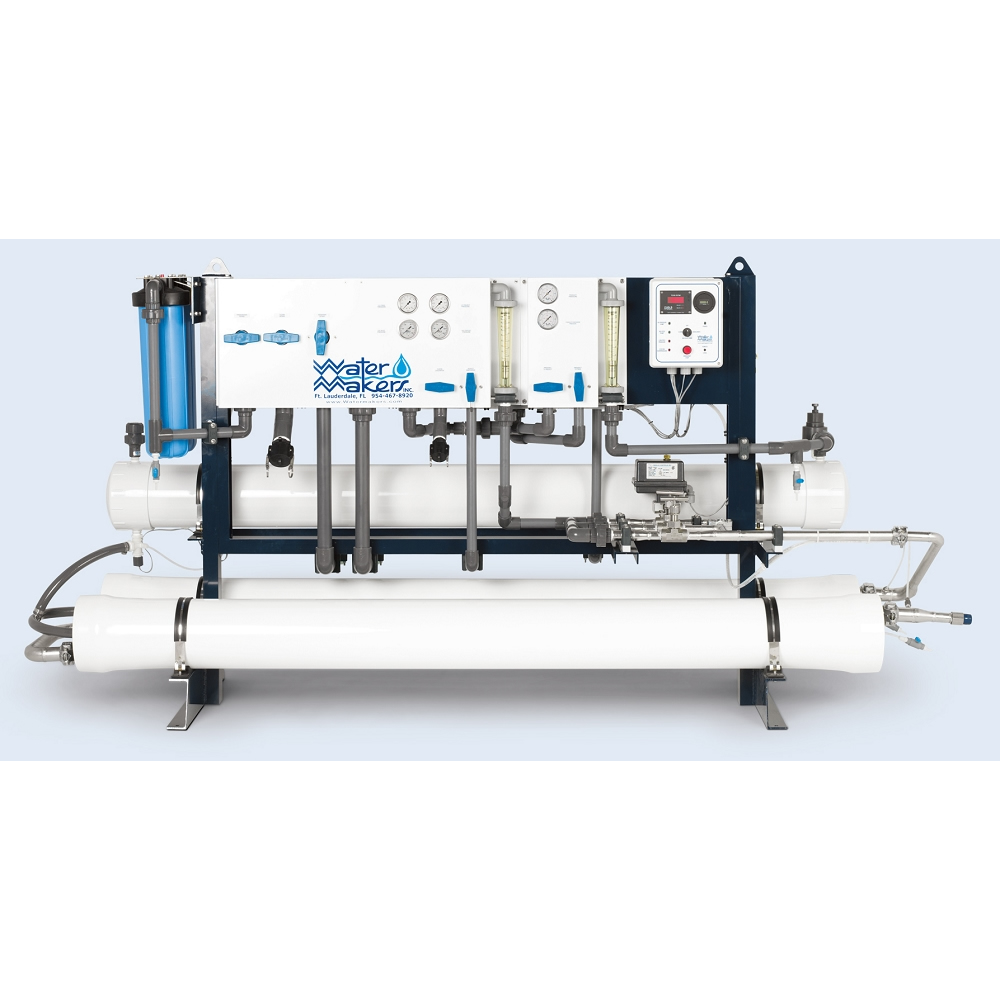

Sample application of where this watermaker may be used.
- Automatic Start/Stop/Rinse with Manual Override
- Unattended Rinse
- Remote Operation
- FedCo pump – high efficiency
- Drawback tank for membrane rinsing
- LED Salinity Monitor & Auto Diverter
- High and Low Pressure Safety Shut-Offs
- Drawback tank for membrane rinsing
- PLC Micro Smart Control Unit
- Fresh Water Rinse & Clean Feature
- Triple-Bag High-Efficiency Prefiltration – 25/5/1 Micron
- Precision Flow Meters and Pressure Gauges
- Non-Corrosive Feed Pump
- Product Water Sample Port
- High-Efficiency TEFC Motors
- All Necessary Installation Hardware
- Unattended Rinse
- High-Efficiency Bag Prefiltration
- Remote Warning Indicators
- Media Filtration – Back Washable
- OzoneTreatment
- Alternate Power Configurations
- Alternate Physical Configurations (Modular/Frame/Container)

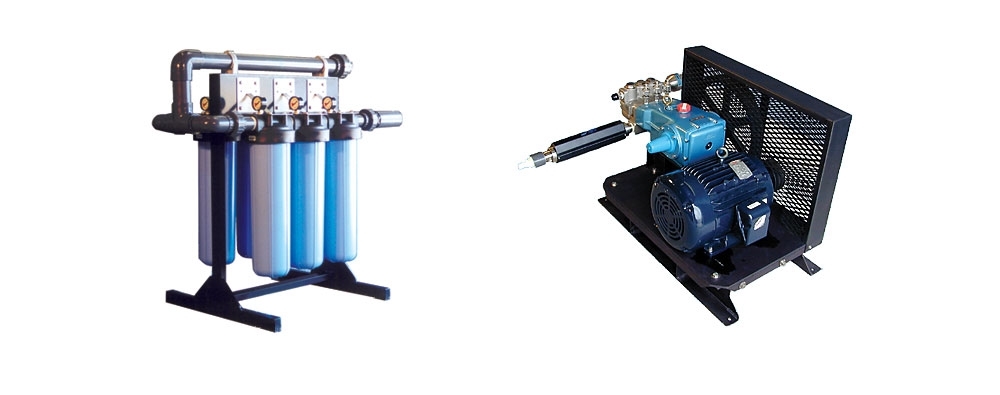

| Component | Length | Depth | Height | Weight** | |
| H.P. Pump/Motor | 44.0″ | 38.0″ | 30.0″ | 600.0 lbs | |
| Prefilters (including frame and piping) |
38.0″ | 24.0″ | 36.0″ | 94.0 lbs | |
| Charcoal Rinse Filter (including piping) |
25.0″ | 8.3″ | 28.8″ | 38.0 lbs | |
| Feed Pump (including fittings) |
24.0″ | 12.3″ | 16.8″ | 45.0 lbs | |
| Frame (with all other components) |
120.0″ | 21.0″ | 56.0″ | 951.0 lbs | |
| *not pictured **approximate |
Total Weight**: | 1728.0 lbs | |||
| Capacity* | (GPD) | 18432.0 | |||
| (GPH) | 768.0 | ||||
| (LPH) | 2907.2 | ||||
| Horsepower | H.P. Pump | 20.0 | |||
| Feed Pump | 2.0 | ||||
| H.P. Pump Flow | 27.0 | ||||
| Power Specifications | |||||
| Option 1 | 44.5 amps @ 230V, 60 Hz, 3-phase, 10.24 kW | ||||
| Option 2 | 22.2 amps @ 460V, 60 Hz, 3-phase, 10.24 kW | ||||
*Standard Test Conditions:
Pressure: 900 PSI
Source Water: Salinity 35,000 ppm, pH 7, temp. 77F/25C
Product Flow: +/- 15% at standard conditions
